Please note:If you observe from outside,the fold time of the cab is faster than that of the co-pilot, very subtle, within 1S.
Item Description
• This system can unfold the side mirror automatically when opening the door before igniting the car; fold the side mirror automatically when ACC off and closing the door. Compatible with the original car electric system and security system
Specifications
• Material: ABS
• Voltage: 12 (V)
• Model Name: Auto Side Rearview Mirror Closer
Features
• Auto folding/unfolding, effective anti-scratching and anti-collision.
• Overload protection, if the door is closed/opened too frequently, the system will stop to fold/unfold the side mirror to protect the motor of side mirror.
• Easy installation, no need to change any original car lines and setting. The box can be hidden in the center console.
Installation document https://cartrimhome.cn/our_dw/CTH-Folding-Mirrors-DIY.pdf

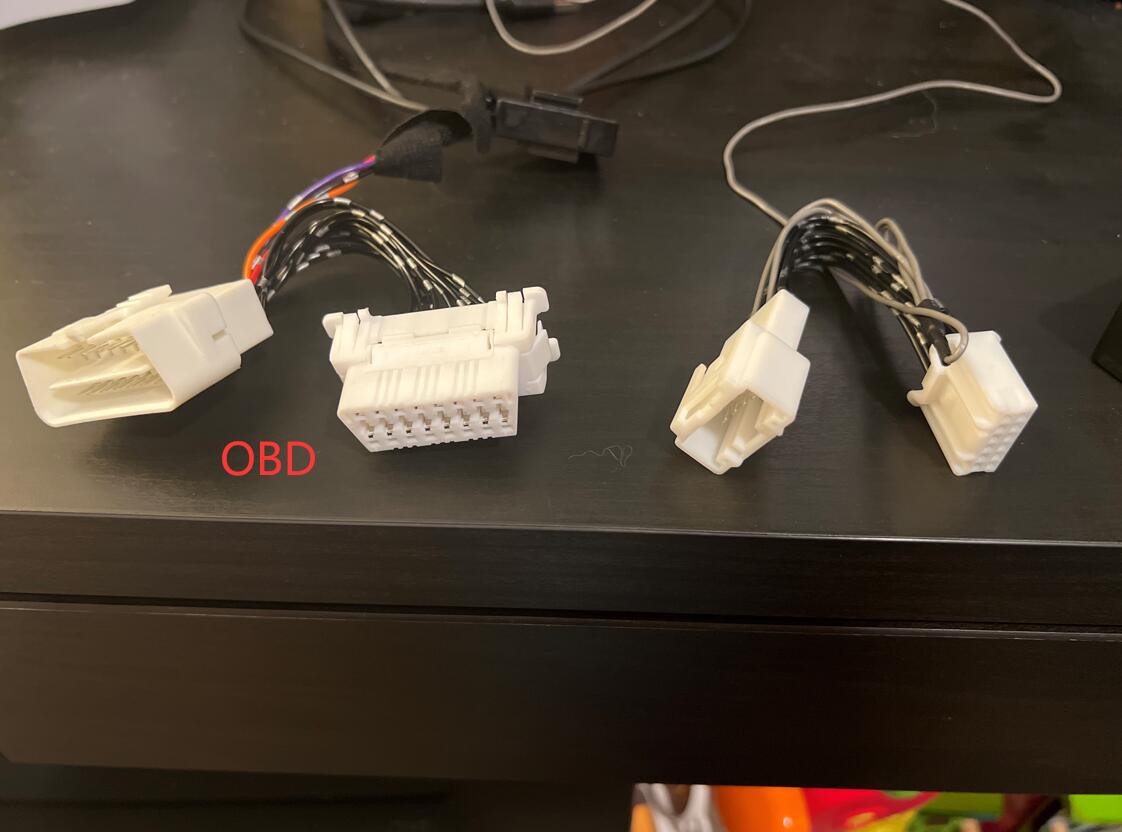

The interface on the left is connected to OBD, and the interface on the right is connected to the interface next to the rest pedal, which is the interface that controls the rolling of the window.
https://youtu.be/QL-dyVUfyY4

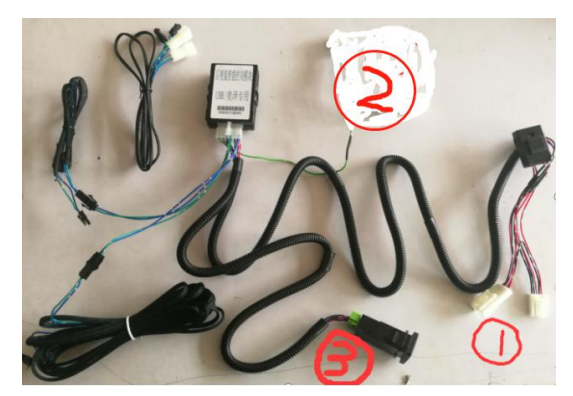

As for the protocol box in the product, connect the product harness.
